TP LINK 5GHz 300 Mbps 23 dBi Outdoor CPE (CPE610)
₵1,300.00
- Delivery within 1-3 Days
- 6 Months Warranty for Factory Defects
- In the Box: Outdoor Wireless CPE, 24V 0.5A Passive PoE Adapter, Pole Mounting Straps, AC Power Cord, Installation Guide
Product details
Professional-standard 23dBi Directional Antenna for Long-range Wireless Transmission
With 23dBi high-gain directional 2×2 MIMO Cassegrain antenna and dedicated metal reflector, the CPE610 provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps1 23dBi Outdoor CPE610 an ideal choice and cost effective solution for outdoor wireless networking applications.
Specifications
- Processor560MHz CPU, MIPS 74Kc
- Memory64MB DDR2 RAM,8MB Flash
- Interface 10/100Mbps Shielded Ethernet Port (LAN/POE) / Reset Button
- Antenna Gain23dBi
- Antenna Beamwidth9°(Azimuth), 7°(Elevation)
- Protection15KV ESD Protection 6KV Lightning Protection
- Wireless StandardsIEEE 802.11a/n
- Proprietary ProtocolTDMA Mode (with Pharos MAXtream enabled)
- Wireless SpeedsUp to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic)
- Frequency5.15~5.85GHz
- Transmission PowerMax. 25dBm (Adjustable power by 1dBm)
- Network ConfigurationWAN: Static/Dynamic/PPPoE/L2TP/PPTP LAN: Static/Dynamic/DHCP Forwarding: ALG/UPnP/Virtual Server/Port Trigger Security: SPI Firewall/ Ping Forbidden/DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding
- Wireless ConfigurationsPharos MAXtream TDMA Technology Selectable Channel Width: 5/10/20/40MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging(AP Mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
- Management FeaturesDiscovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server
- System ToolsIndicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute
- System-level OptimizationsOptimized IGMP Snooping/Proxy for multicast applications Hardware watch dog
Features
- Up to 300Mbps on 5GHz wireless data rates
- 23dBi high-gain directional 2×2 MIMO antenna and a dedicated metal reflector, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation

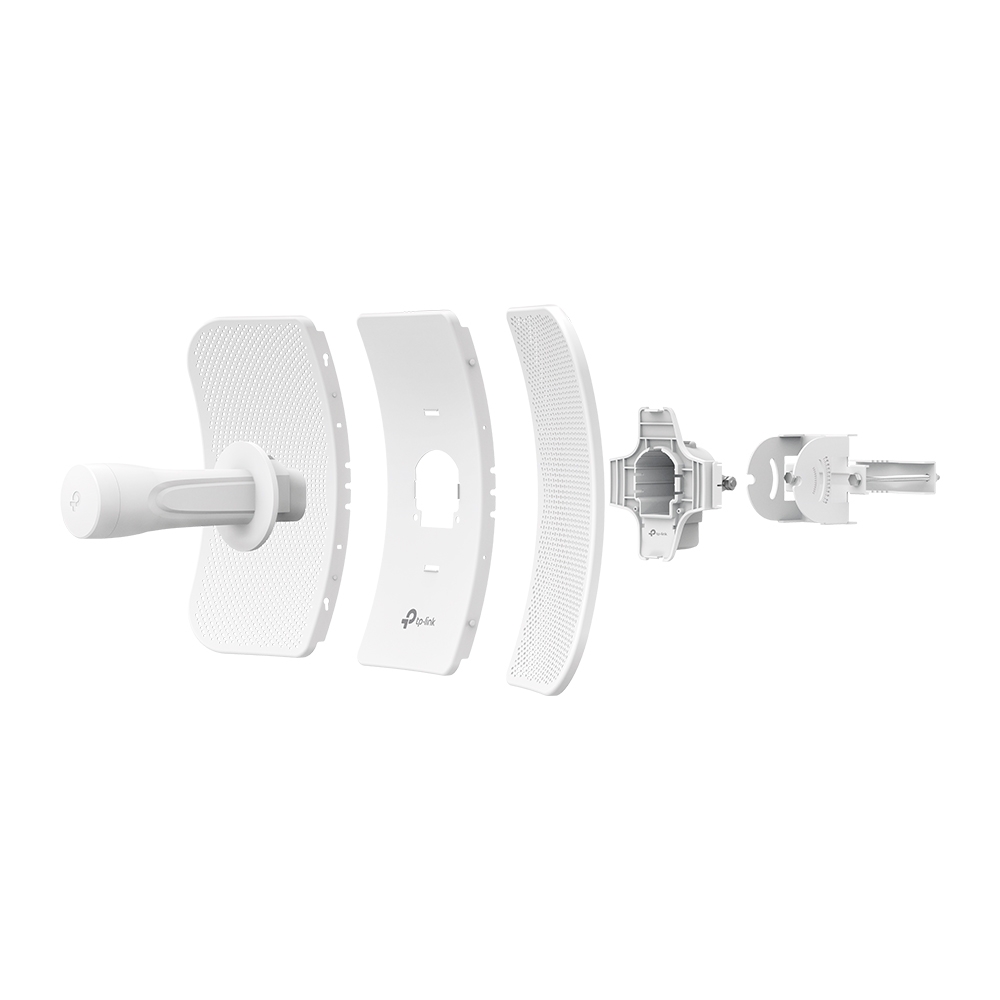

- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE610 stable even in strong winds
- Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
- TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
- Pharos Control gives administrators a free, centralized management system
- Passive PoE supports to allow flexible deployment and convenient installation
